KTM RC 390 (MY22)

KTM RC 390 (MY22)

The 2022 KTM RC 390 is a high-performance Supersports machine with its roots firmly planted on the race track. Featuring an impressive technology package, as well as race-derived styling, handling characteristics, and addictive power delivery, the KTM RC 390 is a real-world racer with undoubted pedigree.

TEST RIDE BOOK NOW

BSP. RM33800

product
product
product
product
product
product
product
product
  • COLOUR

01 / PERFORMANCE

performance

ENGINE

The 2022 KTM RC 390 uses the proven 373 cc liquid-cooled, single cylinder four-stroke engine to maximum effect. Revised engine mapping, improved torque figures, and smoother, hard-hitting power delivery means this state-of-the-art powerplant churns out unmatched performance.

performance

PERFORMANCE

Thanks to a larger airbox, increased torque, and ultra-slick throttle response, the KTM RC 390 rockets off the line and into pole position. A new Ride-by-Wire system also means it steps onto the podium with more precise engine mapping, traction control, and the added benefit of optional Quickshifter+.

performance

CYLINDER HEAD

Four valves, double-overhead cams and, ultra-hard carbon-coated cam levers mean the cylinder head on the KTM RC 390 produces more power but retains its legendary reliability.

performance

EXHAUST

Taking its design cues from the MotoGP™ RC16, the exhaust of the KTM RC 390 boasts stainless steel headers with an aluminum muffler, which not only look the part but give the KTM RC 390 a distinct, throaty rumble as it charges through the gears and onto the redline.

performance

SLIPPER CLUTCH

Preventing the rear wheel from locking up under hard deceleration, the slipper clutch opens up when the engine back-torque becomes too high, but it also closes with the force of the clutch springs when you get onto the throttle. This stops unwanted rear wheel chatter and ensures maximum control - while also allowing the clutch lever to be actuated with hardly any pressure at all.

performance

COOLING

Improved airflow throughout the engine allows the KTM RC 390 to run cooler, giving it the optimal performance temperature needed to hit the apex, lap after lap.

02 / POWER

performance

FRAME

A new, ultra-lightweight frame design saves 3.3 lbs (1.5 kg) over the previous generation, making use of a trellis frame and bolt-on subframe, which also gives the 2022 KTM RC 390 improved high speed stability and increased rider feel. The result? Faster lap times.

performance

SUSPENSION

The 2022 KTM RC 390 makes use of a completely new suspension setup, giving it real race-bike credibility with unmatched specifications in the sub-400 cc Superpsports segment.

performance

FRONT FORK

Boasting a 43 mm WP APEX open cartridge, adjustable upside down front fork with 30 clicks of compression and rebound damping adjustment, the KTM RC 390 not only shares proper sportsbike technology with bigger bikes, but it also handles like them too. New axle clamps and a hollow axle save weight up front too.

performance

REAR SHOCK ABSORBER

Tuning your KTM RC 390 to be the perfect track day tool is easy, thanks to a new rebound and preload adjustable split-piston WP APEX shock absorber taking care of things in the rear.

performance

BRAKES

Reigning in a charging KTM RC 390 comes courtesy of radially mounted 4-piston-fixed BYBRE caliper combined with a 320 mm brake disc upfront and a one-piston fixed caliper with 230 mm disc brake setup on the rear wheel. Not only do these provide the best possible deceleration, they save 960 grams of weight and can be fully exploited thanks to state-of-the-art ABS technology. An adjustable front brake lever completes the package.

performance

WHEELS

An all-new bionic wheel design features fewer spokes and open hubs, which not only greatly improves handling characteristics, but most importantly, saves a massive 7.5 lbs (3.4 kg) of rotating unsprung mass. This means quicker turn-in on the track and improved durability on the street, making the KTM RC 390 an all-out apex clipping master.

03 / ERGONOMICS

performance

HANDLEBARS

Designed on the track to chase down lap times and give riders their perfect setup, these clip-on handlebars feature 10 mm of height adjustment, so when the race is over they can be raised for more relaxed, everyday applications.

performance

SEAT

The all-new KTM RC 390 seat features an improved profile for seamless, unrestricted rider movement, but also has thicker, ergonomically-shaped foam for better comfort. A grippy, hard-wearing outer material has been added to improve grip in all weather conditions.

performance

RIDER CONTACT

The KTM RC 390 boasts a rider-centric layout, designed to give riders maximum contact with the bike, without restricting their movement. The knee area is ergonomically developed to be as narrow as possible with the largest possible contact area for optimum control when on the edge.

performance

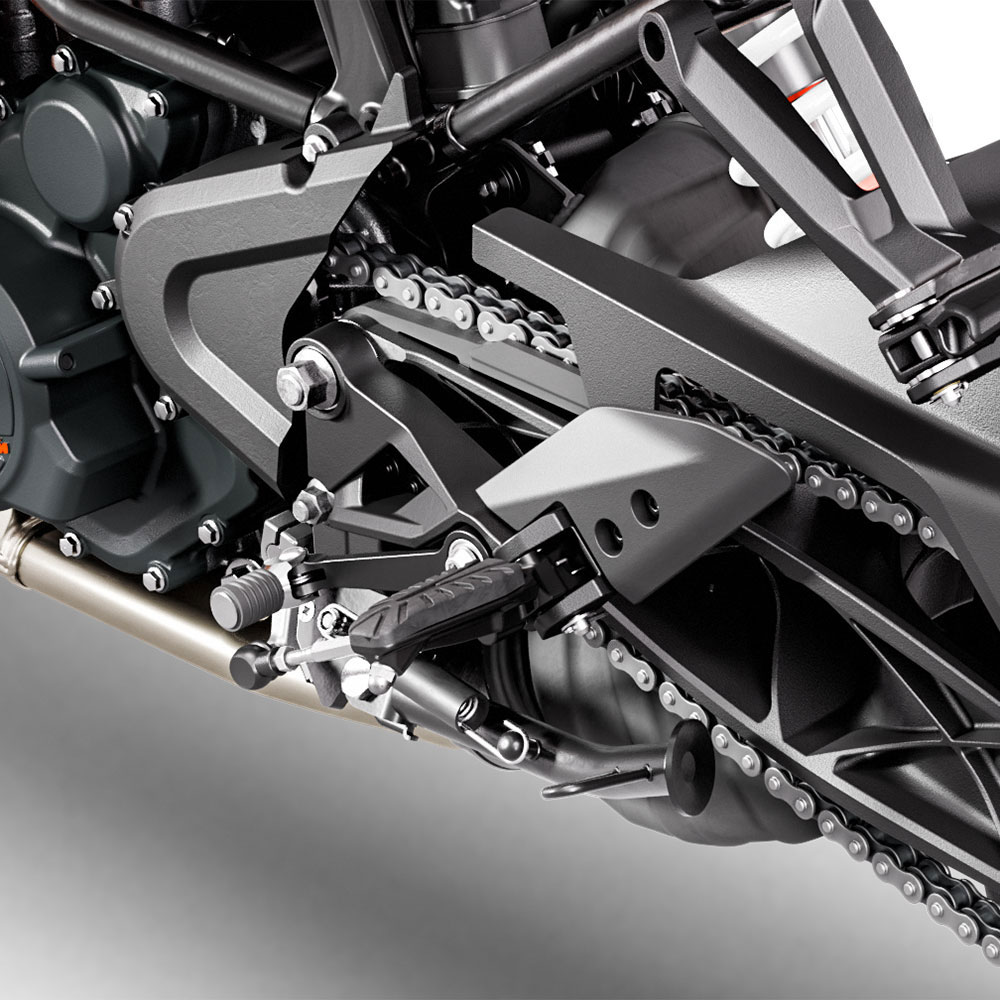

FOOTPEGS

New lightweight footpegs feature the optimal geometry to keep you firmly planted when cranked over, deep into the corners.

performance

FOOTLEVERS

Folding foot levers prevent unwanted breakage in the event of a fall and also ensure the bike stays on-line and undisturbed should you scrape the pegs at big lean angles.

04 / BODYWORK & GRAPHICS

performance

GRAND PRIX INSPIRED

Taking its lead from the pinnacle of 2-wheeled racing, the KTM RC 390 echoes the design of the KTM RC16 racer in both styling, ergonomics and Factory Racing-inspired color options.

performance

BODYWORK

Completely redesigned, race-inspired bodywork provides class-leading wind protection and a higher top speed thanks to optimized aerodynamics created by using CFD (Computational Flow Dynamics) simulations.

performance

FUEL TANK

A new, larger 3.6 gallon (13.7 liter) fuel tank is inspired by the KTM Moto3 race bike, and provides the best-in-class fuel capacity. This, combined with the KTM RC 390's low fuel consumption, means you can go further, faster, for longer.

performance

MIRRORS

New foldable mirrors are wider to have a broader visual range, but are also sharper to provide improved aerodynamics. They're also more practical, folding in for a narrower profile when maneuvering the RC 390 through tight spacing or parking.

05 / SOFTWARE & ELECTRONICS

performance

TFT DISPLAY & SWITCHGEAR

An all-new TFT dashboard lets you see all the important information you need at a glance, or allows you to customize what you want to see via intuitive switchgear. The ambient light adaptive sensor also means the display adjusts to changing light conditions automatically, so that you maintain perfect visibility, day or night.

performance

MTC

Complete confidence at any angle, Motorcycle Traction Control reacts in a matter of milliseconds if the rotational speed of the rear wheel is disproportionate to the riding situation. MTC reduces the engine output with an extremely smooth, barely perceptible intervention at the throttle valves, reducing slippage to optimum proportions. This means riders can enjoy the full power of the KTM RC 390 under all circumstances, on track and on the road.

performance

CORNERING ABS

The KTM RC 390 is equipped with Cornering ABS to ensure maximum braking performance under all conditions. This allows riders to use the full power of the BYBRE brakes when navigating a corner by taking the lean angle of the motorcycle into account, reducing the chance of locking up a wheel mid-corner.

performance

SUPERMOTO ABS MODE

The KTM RC 390 can let it all hang out, thanks to SUPERMOTO ABS. This mode allows the rider more freedom when it comes to hard braking, without compromising on safety. This is done by deactivating ABS functionality on the rear wheel which allows the rider to slide the rear into a corner. At the same time, rear wheel lift up detection is also disabled allowing the rear wheel to lift up, but keeping brake pressure on the front until an excessive front wheel slip is detected, at which point ABS will intervene. This also means the rider can apply more brake pressure when cornering or trail braking.

performance

QUICKSHIFTER +

Shift like a pro with the KTM RC 390 and KTM's optional QUICKSHIFTER +, allowing you to gear up or down without using the clutch lever. This means quicker shift times, improved rear wheel traction, smoother acceleration and the distinct racetrack sound. This works by cutting the ignition at the moment the shift lever moves up or down, unloading the gearbox, and making it possible for you to switch one gear up without closing the throttle.

TECHNICAL DETAILS

ENGINE
TORQUE37 Nm
TRANSMISSION6-speed
COOLINGLiquid cooled
POWER IN KW32 kW
STARTERElectric starter
STROKE60 mm
BORE89 mm
CLUTCHPASC™ antihopping clutch, mechanically operated
CO2 EMISSIONS82 g/km
DISPLACEMENT373 cm³
EMSBosch EMS with RBW
DESIGN1-cylinder, 4-stroke engine
FUEL CONSUMPTION3.52 l/100 km
LUBRICATIONWet sump
CHASSIS & BRAKES
TANK CAPACITY (APPROX.)13.7 l
ABSBosch 9.1 MB Two Channel ABS (Supermoto ABS)
FRONT BRAKE DISC DIAMETER320 mm
REAR BRAKE DISC DIAMETER230 mm
FRONT BRAKEFour-piston radial fixed calliper
REAR BRAKESingle-piston floating calliper
CHAIN520 X-Ring
DRY WEIGHT155 kg
FRAME DESIGNSteel trellis frame, powder coated
FRONT SUSPENSIONWP APEX 43
GROUND CLEARANCE158 mm
REAR SUSPENSION WP APEX - Monoshock
SEAT HEIGHT824 mm
STEERING HEAD ANGLE66.5 °
SUSPENSION TRAVEL (FRONT)120 mm
SUSPENSION TRAVEL (REAR)150 mm
