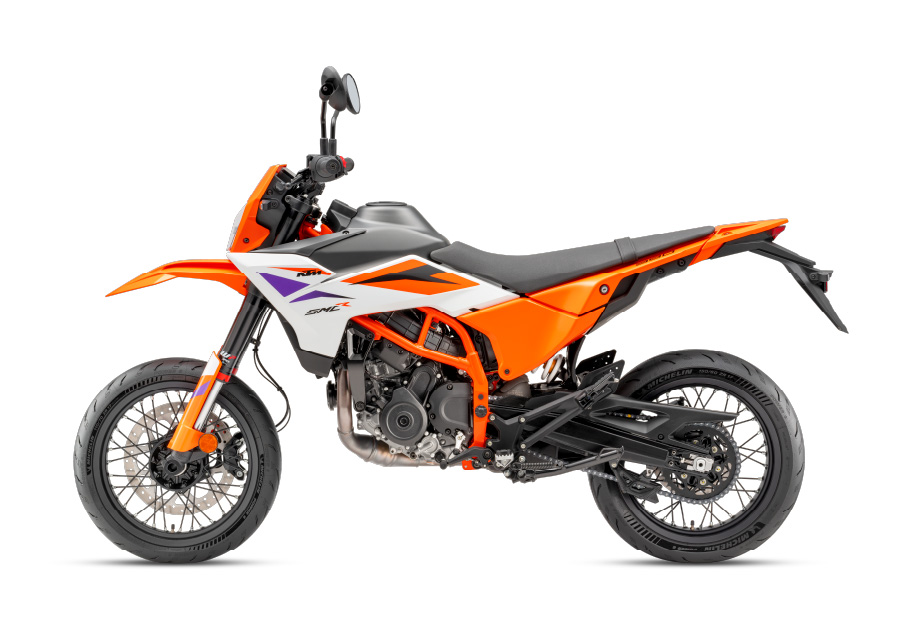

Most bikes take you places. This one might get you into trouble. The KTM 390 SMC R is a masterclass in urban mischief. Designed for agile city riding and twisty mountain detours, this lightweight SuperMotard delivers world-class agility to the masses. Dominate every corner and double the fun. Not for the serious.
TEST RIDE BOOK NOW

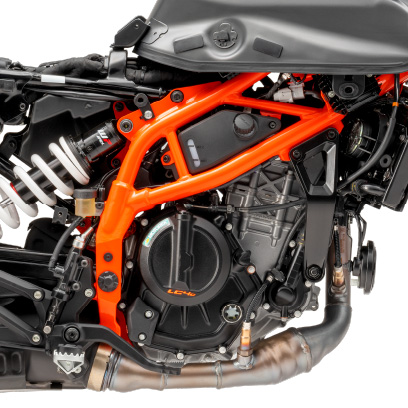

Boasting the latest generation of KTM's LC4c engine, the KTM 390 SMC R features a compact, 399 cc single-cylinder powerplant, churning out impressive power and effortless acceleration. This makes it ideal for charging through motorway traffic, or twisty mountain passes.

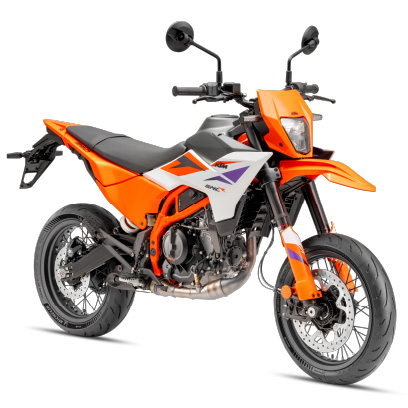

Finding that perfect balance when attacking your favorite stretch of asphalt or for added comfort around town is easy, thanks to the KTM 390 SC R's adjustable suspension, brake and clutch levers, and footrests - not to mention a complete PowerPart catalog filled with performance and style enhancing add-ons.

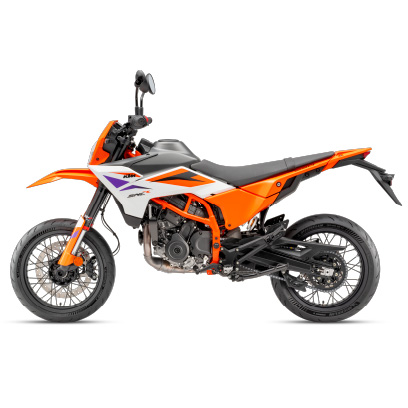

With an ergo triangle inspired by its trusted and beloved 690 sibling, the KTM 390 MC R boasts aggressive bodywork and a compact 9L metal fuel tank that is perfectly styled to allow for easy, knee-down action. The bodywork is also made from proven, flexible, and long-lasting PP plastic material better suited for SuperMoto and aggressive riding.

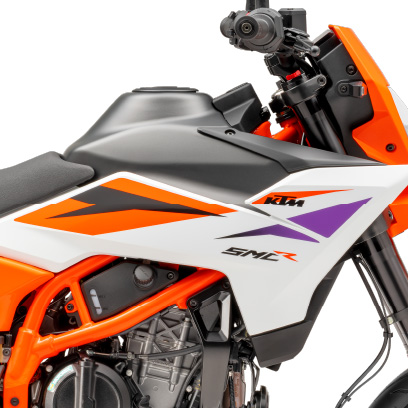

The KTM 390 SMC R comes with premium looks and a striking graphic design as standard. Thanks to top-tier in-mold graphics, it not only looks the part but can also handle anything the outdoors throws at it.

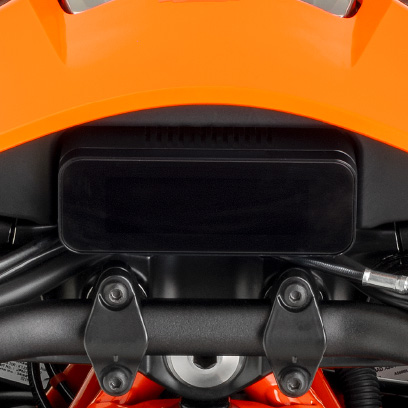

The H42 TFT dashboard takes prime position ahead of the rider, featuring a unique, specially-designed user interface to suit the compact screen size. The 4.2" screen made from bonded glass, the TFT screen also boasts a special coating and polarisation to reduce glare and increase visibility in all lighting conditions. Riders can also access music, incoming calls, turn-by-turn navigation, and Ride Modes - with a USB port for device charging duties.

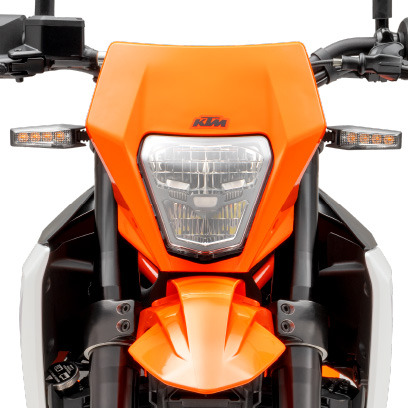

Tearing a deep gash into the night, the KTM 390 SMC R is equipped with powerful LED lights taken directly from the KTM 690 SMC R. Not only do these work when the world becomes dark, but they also provide improved visibility when navigating busy traffic or misty road conditions.

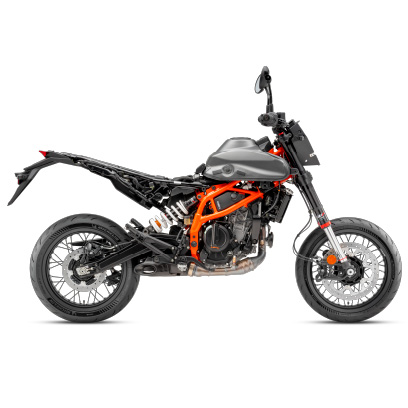

The design features a 2-piece construction composed of a steel trellis main frame with a bolt-on steel trellis subframe. Not only designed for overall looks, the primary objective of the frame design is to enhance vehicle dynamics by augmenting torsional rigidity, improved agility, and enhanced feedback from the chassis on both tarmac and dirt tracks.

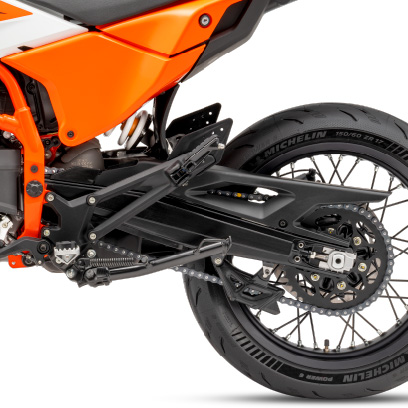

A gravity die-cast swingarm has been specifically developed for the KTM 390 SMC R, and provides a sturdy and durable platform for the rear suspension system. Featuring a direct shock absorber mount offset to the side, it creates additional space for the unique exhaust system.

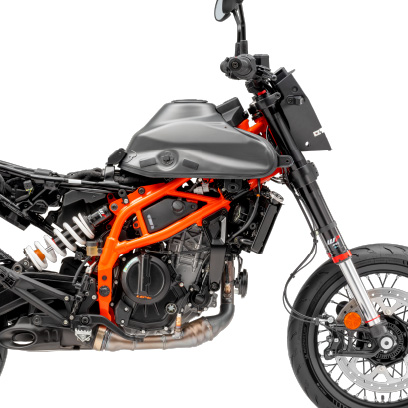

Upfront, a 43 mm W APEX open cartridge fork with 230 mm travel keeps things in check, with adjustable compression and rebound in 30 easy clicks to easy adjustment. On the rear, any big hits are handled by a WP APEX Separate piston shock absorber with 230 mm of travel. The shock is also rebound adjustable with 20 clicks on the fly, while preload adjustment can be taken care of with a tool.

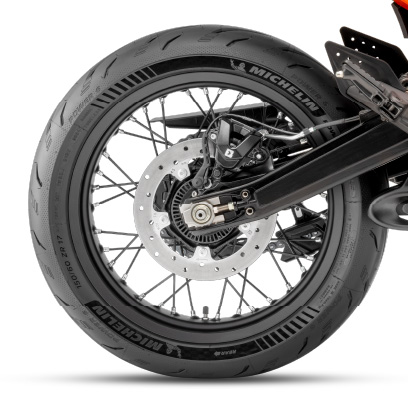

The KTM 390 SMC R boasts spoked 17" wheels at each end, wrapped in Michelin Power 6 rubber measuring 110/70 R17 on the front and 150/60 R17 on the rear.

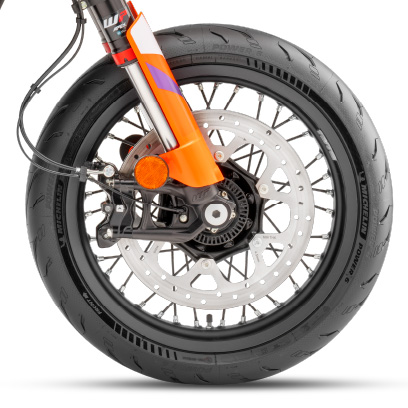

Pulling out all the stops, the KTM 390 SMC R is equipped with a 320 mm radial brake disk and Bybre caliper upfront, with a 240 mm brake disc and single-piston caliper at the rear. These are supported by KTM's proven ABS technology for added safety - but the rear can also be disabled completely for added "SuperMoto-fun".

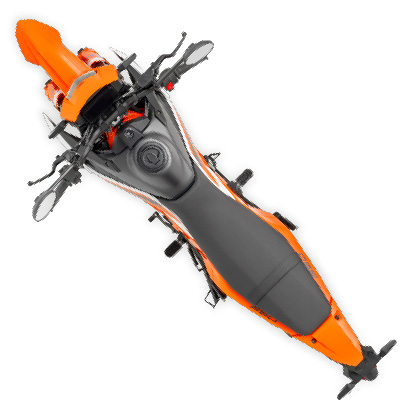

With an ergo-triangle inspired by its bigger brother, the KTM 690 SMC R, the KTM 390 SMC R features an aggressive handlebar shape, upright seating angle, and generous space for easy on-bike mobility.

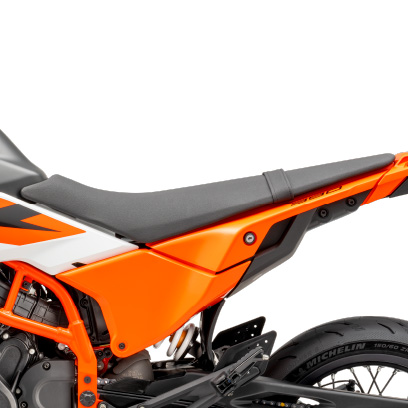

Taking inspiration from the KTM EXC range, but with added comfort for longer commutes or trips, the KTM 390 SMC R has a new 860 mm single-piece flat seat design for easy on-board mobility and getting low into an apex.

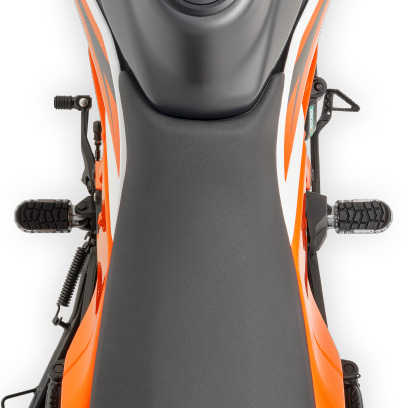

Grippy footrests ensure riders have an uninterrupted foothold when banging through the gears, or carving through some tight turns These are also adjustable in two positions.

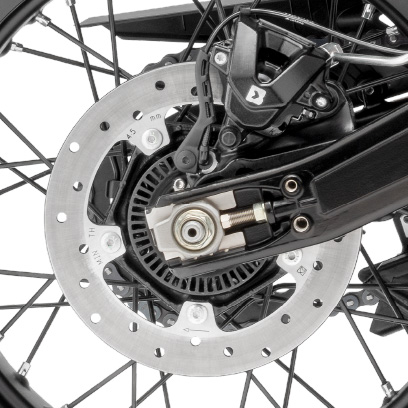

The KTM 390 SMC R boasts a Bosch 10.3MB Modulator which is the brain responsible for its impressive ABS system. This enables standard ABS and a SUPERMOTO ABS option for more extreme riders.
The KTM 390 SMC R gives its pilots a selection of Ride Modes to best suit whatever conditions they find themselves in. With STREET Mode activated as standard, a SPORT Mode is also available and is available to riders who wish to push the limits. All RIDE MODES are easily toggled in via the TFT display, along with ABS settings where applicable.
| ENGINE | |
|---|---|
| DESIGN | 1-cylinder, 4-stroke engine |
| DISPLACEMENT | 398.7 cm³ |
| POWER | 45 PS |
| TORQUE | 39 Nm |
| TRANSMISSION | 6-speed |
| CO₂ EMISSIONS | 79 g/km |
| COOLING | Liquid-cooled |
| ENGINE CYLINDER | Single cylinder |
| EMS | Bosch EMS with RBW |
| ENGINE OIL | Motorex Formula 4T 15W/50 |
| ENGINE STROKE | 4-stroke |
| SUSPENSION | |
|---|---|
| FRONT SUSPENSION | WP APEX open cartridge 43 mm |
| REAR SUSPENSION | WP APEX split piston |
| SUSPENSION TRAVEL (FRONT) | 230 mm |
| SUNPENSION TRAVEL (REAR) | 230 mm |
| FRONT SUSPENSION ADDITION | Compression & rebound, adjustable with 30 clicks |
| REAR SUSPENSION ADDITION | Preload with top ring and rebound with 20 clicks |
| CHASSIS | |
|---|---|
| FRONT BRAKE DISC DIAMETER | 320 mm |
| REAR BRAKE DISC DIAMETER | 240 mm |
| FRONT BRAKE | Floating disc, Bybre radial callipers with 2 pistons |
| REAR BRAKE | Bybre floating calliper with 1 piston |
| CHAIN | 520 X-Ring |
| FRAME DESIGN | Steel trellis frame, powder-coated |
| STEERING HEAD ANGLE | 63.1° |
| REAR SUBFRAME DESIGN | Bolt-on steel trellis frame, powder-coated |
| TRAIL | 111 mm |
| WHEELBASE | 1,453 mm |
| DIMENSIONS | |
|---|---|
| SEAT HEIGHT | 860 mm |
| TANK CAPACITY | Approx. 9 L |
| GROUND CLEARANCE | 270 mm |
| WEIGHT (WITHOUT FUEL) | 154 kg |
| WEIGHT FULLY FUELED | 161 kg |
| FRONT WHEEL DIMENSIONS | 2 x 17" |
| REAR WHEEL DIMENSIONS | 4 x 17" |
| WHEEL TYPE | Spoked wheels with aluminium rims |
